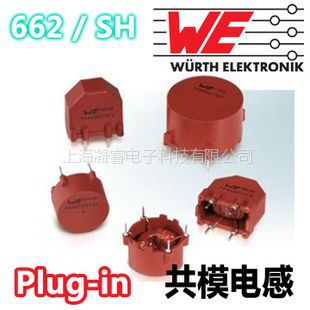

WE-LF Common Mode Power Line Choke
Characteristics:
Easy assembly due to 4 pole housing
Compact, small size
4 soldering pins for perfect mechanical decoupling
Toroidal core choke with sector winding
High interference suppression for common mode interferences in low and middle frequency ranges
Low stray field
Operating temperature: –25 ?C to +125 ?C
Custom designs on request
Applications:
Power line filter
Power electronics
SMPS
Suppression of common mode noise
| 料号 PN | 封装 Package | 尺寸 Dimension | 电感值 Inductance | 精度 Tolerance | 额定电流 Rated Current | 直流阻抗 DC Resistance | 自谐频率 Self Resonant Frequency |
| 7446621007 | 662 / SH | 13×18×15mm | 6.8mH | ±30% | 1A | 300mΩ | |
| 7446622001 | 662 / SH | 13×18×15mm | 1mH | ±30% | 2A | 60mΩ |
