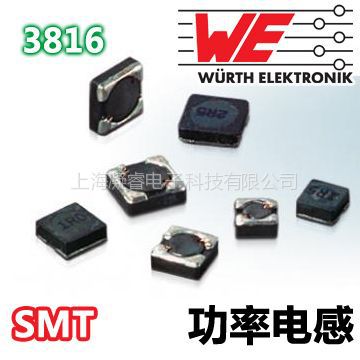

SMD Tiny Shielded Power Inductor WE-TPC3816
德国伍尔特电子 功率电感
元件生产商：Wurth Electronic 德国伍尔特
元件系列： WE-TPC 3816
Characteristics:
Extremely flat power inductor
High current capability
Magnetically shielded which results in a low leakage field
Operating temperature range: –40 °C up to +125 °C
Recommended solder profile: Reflow
Applications:
Portable power like PDA, digital camera, PCMCIA cards and displays
DC/DC converter
LED & backlighting applications
Embedded PC
Clocked power supply
Mobile data gathering, telemetric
同系列还有如下型号，全线现货供应：
3816 3.8*3.8*1.65mm
| Order Code | Size | Inductance | Tolerance Inductance | Rated Current | DC Resistance |
| 7440310047 | 3.8×3.8×1.65mm | 0.47μH | ±35% | 3A | 22mΩ |
